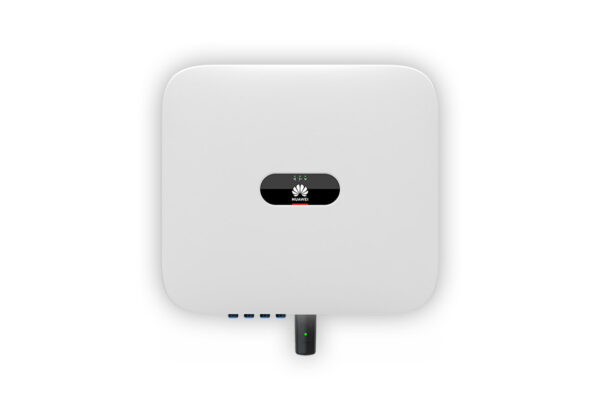

HUAWEI Smart String Inverter SUN2000-20KTL-M2
Compatible to Huawei Smart PV Optimizer SUN2000-450W-P, enables more modules on rooftop
Up to 30% higher yields contributed by optimizing each panel performance
AI Powered AFCI to proactively mitigate fire risk
Communication:
– RS485
– Ethernet via Smart Dongle-WLAN-FE (Optional)
– 4G / 3G / 2G via Smart Dongle-4G (Optional)
Inverter with no quick wear parts, failure rate < 0.5%
Features:
Recommended max. PV input power: 30000 Wp
Max. input voltage: 1080 V
Number of MPP trackers / Input number per MPP tracker: 2 / 2
Rated output power: 20 kW
Rated output voltage: 220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W + N + PE
Max. output current: 33,5 A
DC and AC surge protection: compatible with TYPE II protection class according to EN/IEC 61643-11
Cooling: Natural Convection
Display: LED Indicators; Integrated WLAN + FusionSolarApp
Degree of protection: IP65
Weight (with mounting plate): 25 kg
Dimension (W x H x D): 525 x 470 x 262 mm
